Shown below are just a few of GEI Components’ standard HCRH Series SMT power inductors. To request a quote or further information, please see the Contact page. Overall characteristics of the HCRH Series include:

• High stability and high saturation current
• Good frequency characteristics
• Low loss and high stability
• Easy installation
• ISO 9001, strict quality control, experienced technical staff
• Small orders accepted
• Applications include portable video equipment, audio equipment, televisions, switching power supplies, any circuit requiring protection against electromagnetic radiation, and much more

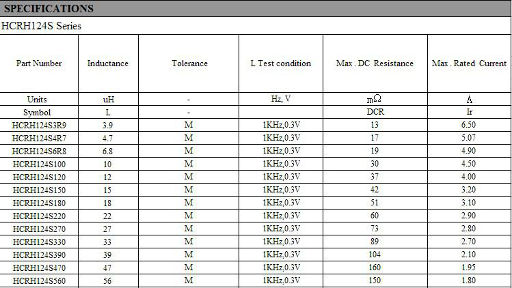

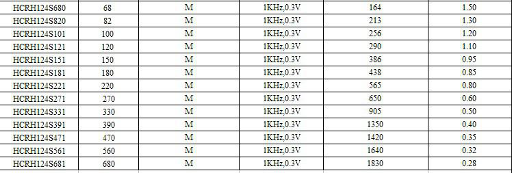

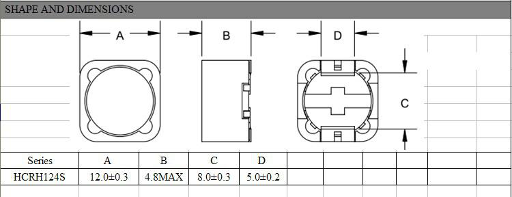

HCRH124 Series Operating temperature range: -30 ℃ to +100 ℃ High power with high saturation Magnetic shielding against electromagnetic radiation Packing: 180 mm embossed tape, 1,000 pieces per reel More information: HCRH124 inductor series

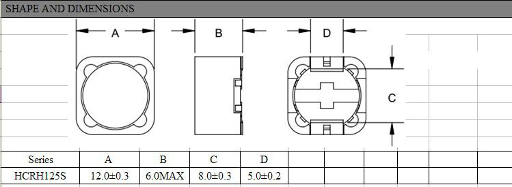

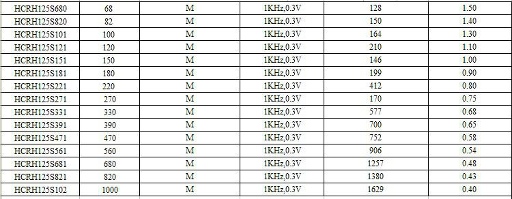

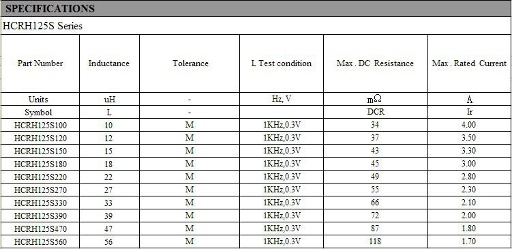

HCRH125 Series Operating Temperature range: -30 ℃ to + 100 ℃ Packaging: 180mm embossed tape, 1,000 pieces per reel More information: HCRH125 inductor series



HCRH127 Series Inductance: 1.2 μH – 1,000 μH



HCRH129 Series 10 µH, 22 µH, 33 µH, 47 µH Operating Temperature range: -30 ℃ to + 100 ℃ Suitable for surface mounting equipment, magnetic shield against radiation



HCRH330 Series Ferrite core, enameled copper wire, 100 µH Shielded construction reduces buzz noise to ultra-low levels Metalized ferrite core results in excellent shock resistance and durability Closed magnetic circuit design reduces leakage flux and EMI 30% higher current rating than conventional inductors of equal size Takes up less PC board space while saving more power Packaging: 180 mm embossed tape, 800 pieces per reel Temperature rise: 20 °C maximum Ambient temperature: 80 °C maximum / Storage temperature: -40 °C ~+100 °C Operating temperature: -25 °C ~+100 °C Terminal strength: 0.5kg minimum / Solder heat resistance: 260 °C, 10 seconds Solvent resistance: PER MIL-STD-202F

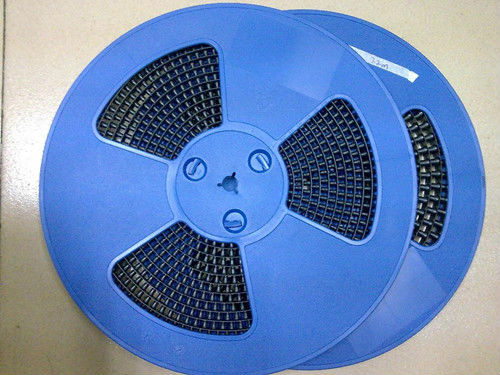

HCRH0630 Series Inductance: 10 μH – 220 μH Various high levels of inductance for superior high saturation Magnetic shield against electromagnetic radiation Packaging: 180 mm embossed tape, 1,000 pieces per reel More information: HCRH0630 inductor series

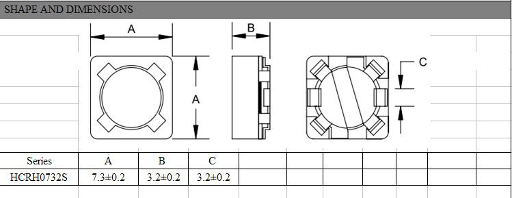

HCRH0732 Series Inductance: 10 μH – 1000 μH / Operating temperature range: -30 ℃ to +100 ℃ More information: HCRH0732 inductor series

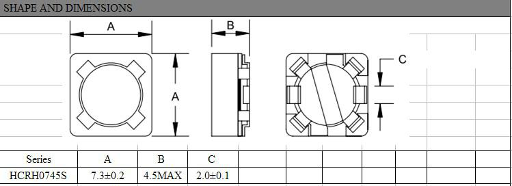

HCRH0745 Series Inductance: 10 μH – 1000 μH Operating temperature range: -30 ℃ to +100 ℃ Shielded against electromagnetic radiation (EMI) More information: HCRH0745 inductor series



HCRH4D18 Series Inductance: 1.0 μH – 47 μH More information: HCRH4D18 inductor series



HCRH4D28 Series Inductance: 1.2 μH – 180 μH More information: HCRH4D28 inductor series



HCRH5D18 Series Inductance: 5.4 μH – 100 μH More information: HCRH5D18 inductor series



HCRH5D28 Series Inductance: 2.6 μH – 100 μH



HCRH6D28 Series Inductance: 3.0 μH – 100 μH More information: HCRH6D28 inductor series



HCRH6D38 Series Inductance: 3.3 μH – 100 μH More information: HCRH6D38 inductor series
