Shown below are just a few of GEI Components’ standard HCP Series SMT inductors. To request a quote or further information, please see the Contact page.

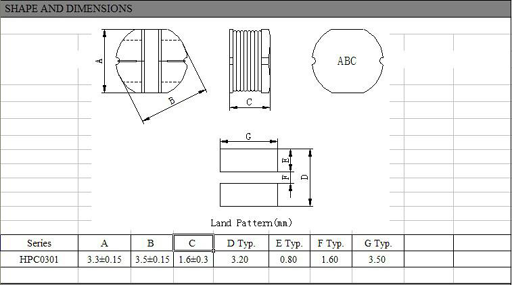

HPC0301 Series
HPC0301 Series
Inductance: as per customer specifications
Easy soldering with high heat resistance
Excellent terminal strength
Packed in embossed carrier tape for use in automatic mounting machines

Applications include graphics cards, notebooks/laptops, mobile devices, step-up or step-down converters, flash memory, and many more

HPC0301 info

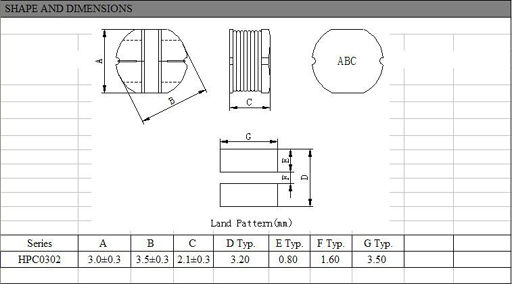

HPC0302 Series
HPC0302 Series
Inductance: 1.5 μH – 150 μH or to customer specifications
Test Instrument: Agilent 4285 & 42841A, Zentech 3305 & 1320, or equivalent
Test frequency: 25.2 MHz – 2.52MHz & 1KHz
Easy soldering with high heat resistance
Excellent terminal strength
Packed in embossed carrier tape for use in automatic mounting machines

Applications include LCD inverters, DC/DC converters, computers, notebooks/laptops, power supplies, graphics cards, mobile devices, step-up or step-down converters, flash memory, and many more

More information: HPC0302 inductor series

HPC0302 info

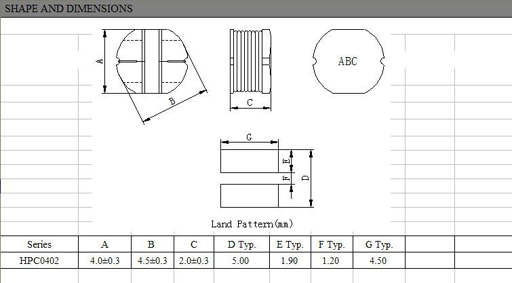

HPC0402 Series
HPC0402 Series

Inductance: any customer specifications
Easy soldering with high heat resistance
Excellent terminal strength
Packed in embossed carrier tape for use in automatic mounting machines

Applications include graphics cards, notebooks/laptops, mobile devices, step-up or step-down converters, flash memory, and many more

HPC0402 info



HPC0403 Series
HPC0403 Series
Inductance: 1.0 μH – 68 μH or to customer specifications
Test instrument: Agilent 4285 & 42841A, Zentech 3305 & 1320, or equivalent
Test Frequency: 25.2 MHz – 2.52 MHz & 1KHz
Easy soldering with high heat resistance
Excellent terminal strength
Packed in embossed carrier tape for use in automatic mounting machines

Applications include LCD inverters, DC/DC converters, computers, notebooks/laptops, power supplies, graphics cards, mobile devices, step-up or step-down converters, flash memory, and many more

More information: HPC0403 inductor series

HPC0403 info

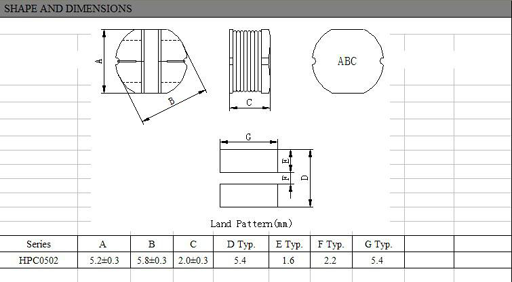

HPC0502 Series
HPC0502 Series
Inductance: any customer specification
Easy soldering with high heat resistance
Excellent terminal strength
Packed in embossed carrier tape for use in automatic mounting machines

Applications include graphics cards, notebooks/laptops, computers, mobile devices, step-up or step-down converters, flash memory, and much more

HPC0502 info



HPC0503 Series
HPC0503 Series
Inductance: any customer specification
Easy soldering with high heat resistance
Excellent terminal strength
Packed in embossed carrier tape for use in automatic mounting machines

Applications include graphics cards, notebooks/laptops, computers, mobile devices, step-up or step-down converters, flash memory, and much more

HPC0503 info



HPC0504 Series
HPC0504 Series
Inductance: 1.0 μH – 68 μH or to customer specifications
Test instrument: Agilent 4285 & 42841A, Zentech 3305 & 1320, or equivalent
Test frequency: 25.2 MHz – 2.52 MHz & 1KHz
Easy soldering with high heat resistance
Excellent terminal strength
Packed in embossed carrier tape for use in automatic mounting machines

Applications include LCD inverters, DC/DC converters, computers, notebooks/laptops, power supplies applications, graphics cards, mobile devices, step-up or step-down converters, flash memory, and many more

More information: HPC0504 inductor series

HPC0703 info



HPC0703 Series
HPC0703 Series
Inductance: 10 μH – 330 μH or to customer specification
Test instrument: Agilent 4285 & 42841A, Zentech 3305 & 1320, or equivalent
Test frequency: 25.2 MHz – 2.52 MHz & 1KHz
Easy soldering with high heat resistance
Excellent terminal strength
Packed in embossed carrier tape for use in automatic mounting machines

Applications include LCD inverters, DC/DC converters, computers, notebooks/laptops, power supplies, graphics cards, mobile devices, step-up or step-down converters, flash memory, and much more

More information: HPC0703 inductor series

HPC0703 info



HPC0705 Series
HPC0705 Series
Inductance: 10 μH – 470 μH
Test instrument: Agilent 4285 & 42841A, Zentech 3305 & 1320, or equivalent
Test frequency: 25.2 MHz – 2.52MHz & 1KHz
Operating temperature: -30℃ – +100 ℃
Packaging: 180 mm embossed tape, 800 pieces per reel

Applications include LCD inverters, DC/DC converters, computers, notebooks/laptops, power supplies, motherboards, communications equipment, and much more

More information: HPC0705 inductor series

HPC1005 info
HPC1005 info
HPC1005 info



HPC1004 Series
HPC1004 Series
Inductance: 10 μH – 560 μH
Test instrument: Agilent 4285 & 42841A, Zentech 3305 & 1320, or equivalent
Test frequency: 25.2 MHz – 2.52 MHz & 1KHz

Applications include LCD inverters, DC/DC converters, computers, notebooks/laptops, power supplies, an many more

More information: HPC1004 inductor series

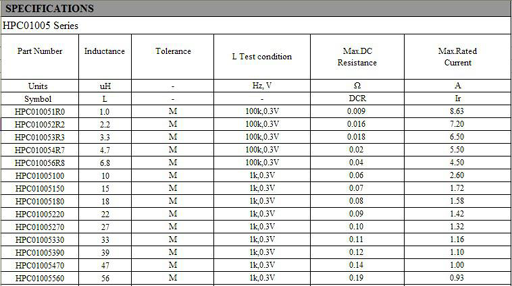

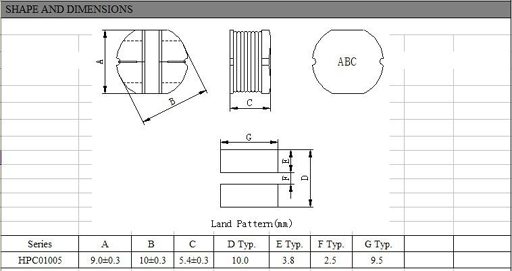

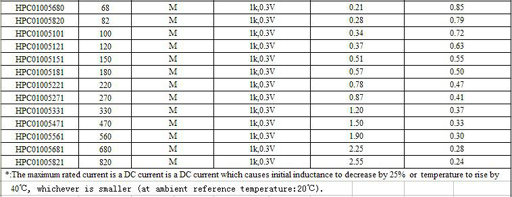

HPC1005 Series
HPC1005 Series
Inductance: 10 μH – 820 μH
Test instrument: Agilent 4285 & 42841A, Zentech 3305 & 1320, or equivalent
Test frequency: 25.2 MHz – 2.52 MHz & 1KHz
Operating temperature: -30 ℃ – +100 ℃
Packaging: 180mm embossed tape, 800 pieces per reel

Applications include LCD inverters, DC/DC converters, computers, notebooks/laptops, power supplies, communications equipment, and many more

More information: HPC1005 inductor series
