Shown below are just a few of GEI Components’ standard HSHW Series SMD power inductors. To request a quote or further information, please see the Contact page. Overall characteristics of the HSHW Series include:

  • High current rate, high Q value
  • Good resistance to heat and humidity
  • High density mounting
  • Small chip suitable for mounting
  • High self-resonant frequency with ceramic material
  • Tight inductance tolerance, stable at high frequencies
  • 30% higher current rating than conventional inductors of equal size
  • Takes up less PC borad space while saving more power
  • Packaging: 180 mm embossed tape, 1,000 pieces per reel
  • Applications: video equipment, audio equipment, televisions and monitors, high frequency circuits, mobile devices, Bluetooth devices, modems, routers, telecommunications equipment, computers, laptops, notebooks, graphics cards, portable gaming devices, navigation systems, automotive systems, and much more

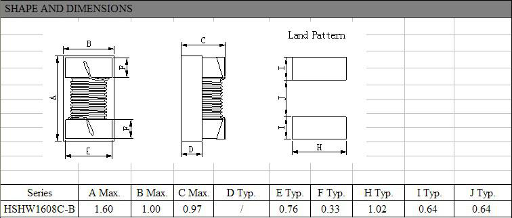

HSHW Series size

HSHW Series

HSHW Series

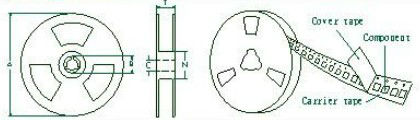

HSHW Series reel
