Shown below are just a few of GEI Components’ standard HSMI Series SMT power inductors. To request a quote or further information, please see the Contact page.

HSMI322522 Series
HSMI322522 Series
Inductance: 0.1 μH – 100μH
Temperature rise: 20 °C maximum
Ambient temperature: 80 °C maximum
Storage temperature: -40 °C – +100 °C
Operating temperature: -25 °C – +100 °C
Terminal strength: 0.5 kg minimum
Resistance to solder heat: 260 °C for 10 seconds
Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
Resistance to solvent: PER MIL-STD-202F
Metallization of the Ferrite Core gives excellent shock resistance and durability
Closed magnetic circuit design reduces leakage flux and EMI
30% higher current rating than conventional inductors of equal size
Takes up less PC board space while saving more power
Packaging: 180mm embossed tape, 800 pieces per reel

Applications include LC resonant circuits such as oscillators and signal generators, circuit isolation, RF flters, disk drives, computer peripherals, audio systems, video equipment, televisions, monitors, telecommunications equipment, LED Lighting, mobile devices, Blu-Ray disc recorders, set-top boxes, notebooks/laptops, computers, graphics cards, portable gaming devices, navigation systems, automotive systems, and many more

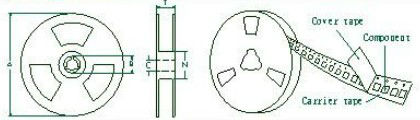

HSMI322522 reel



HSMI453232 Series
HSMI453232 Series
Inductance: 0.1 μH – 1000μH

Applications include LC resonant circuits such as oscillators and signal generators, circuit isolation, RF flters, disk drives, computer peripherals, audio systems, video equipment, televisions, monitors, radios, telecommunications equipment, and many more
